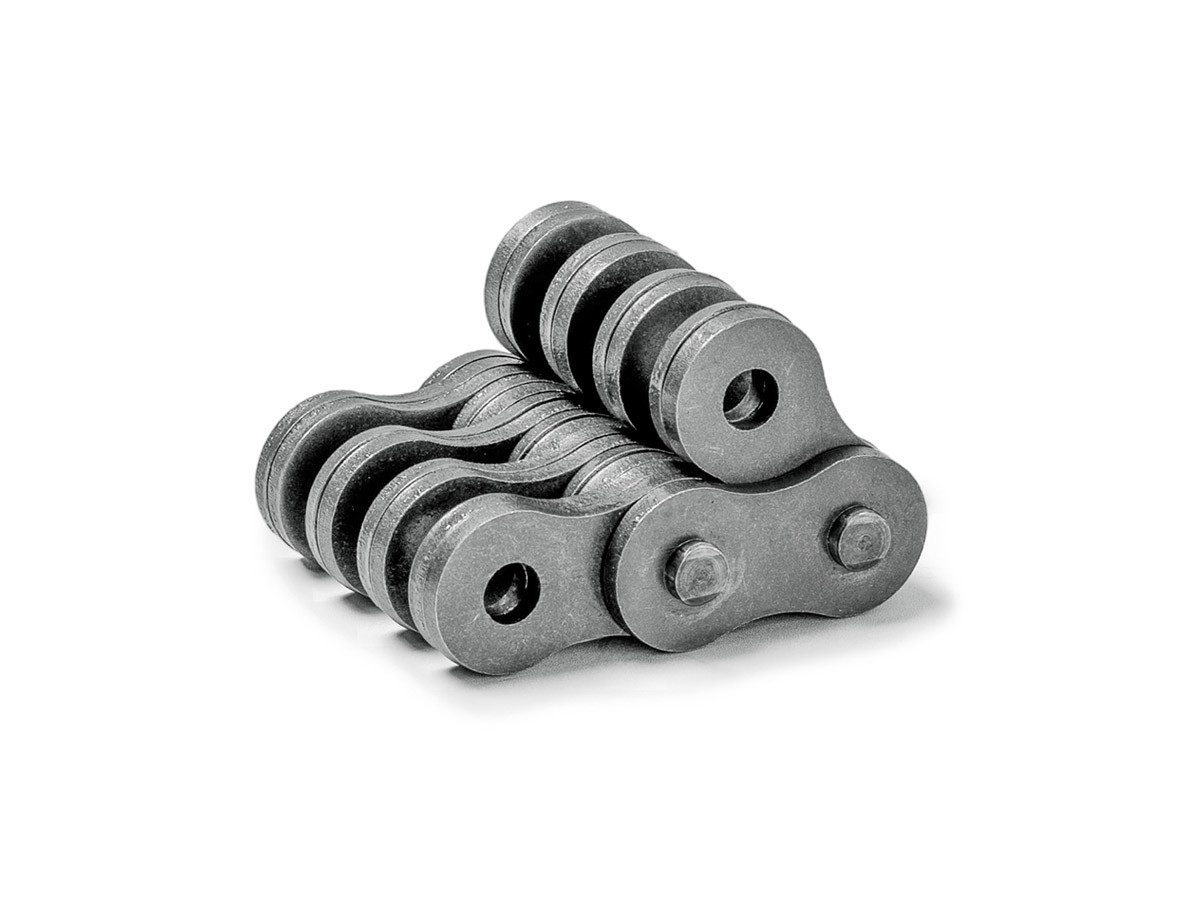

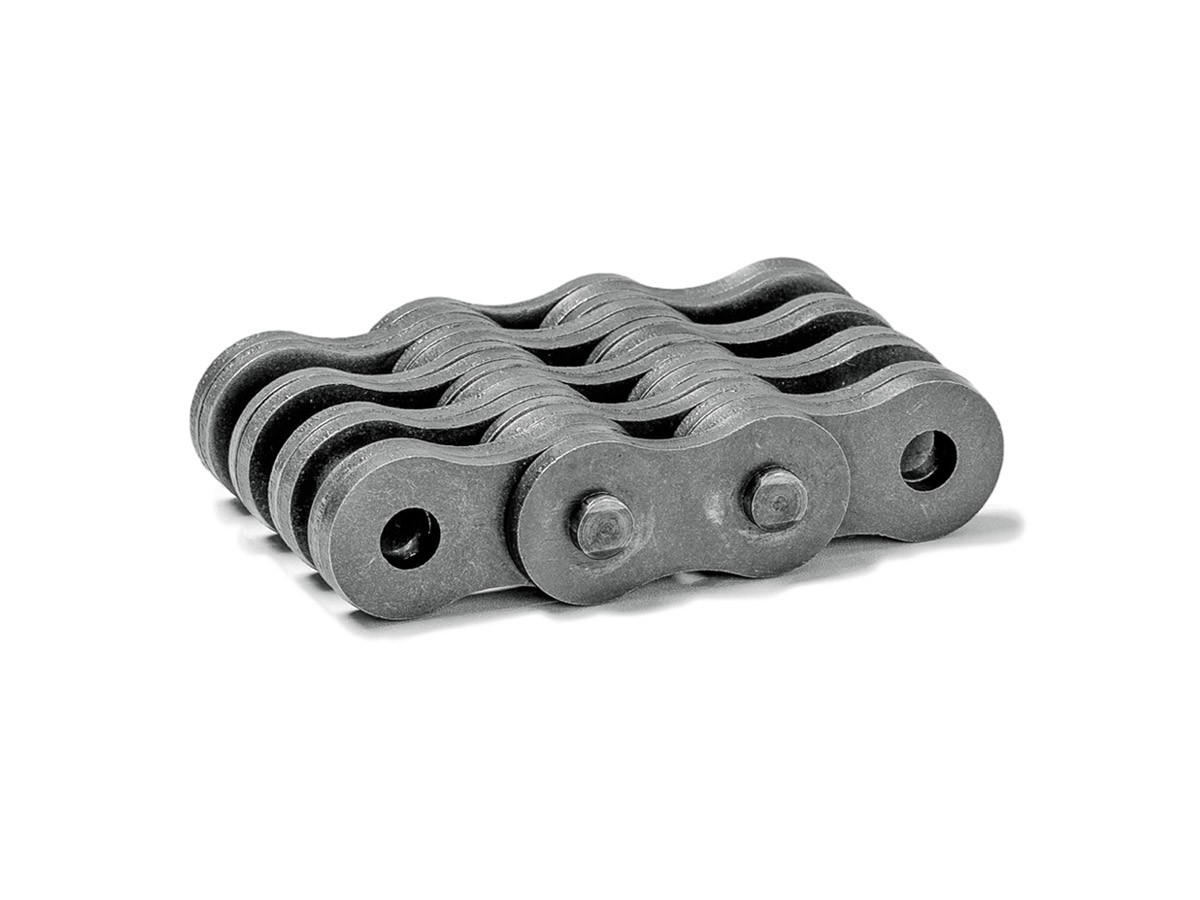

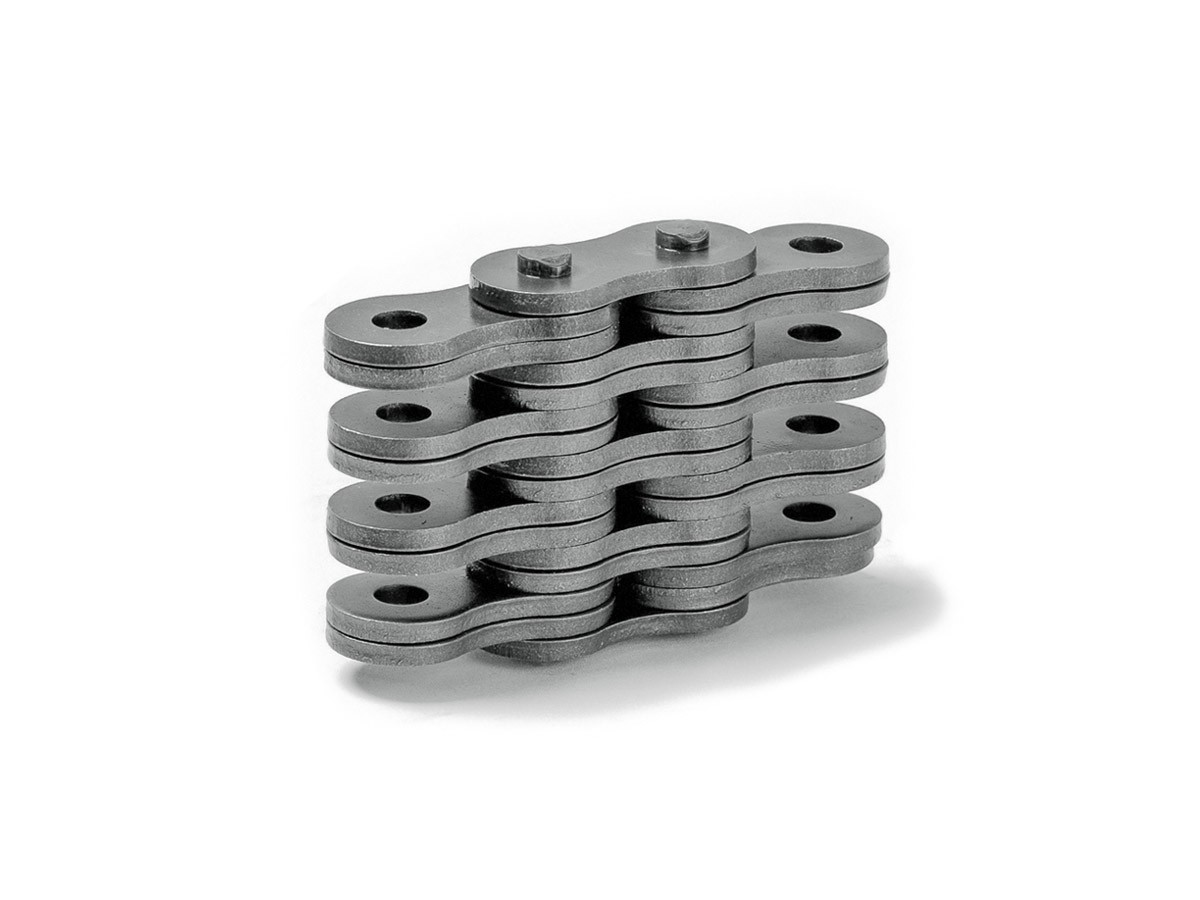

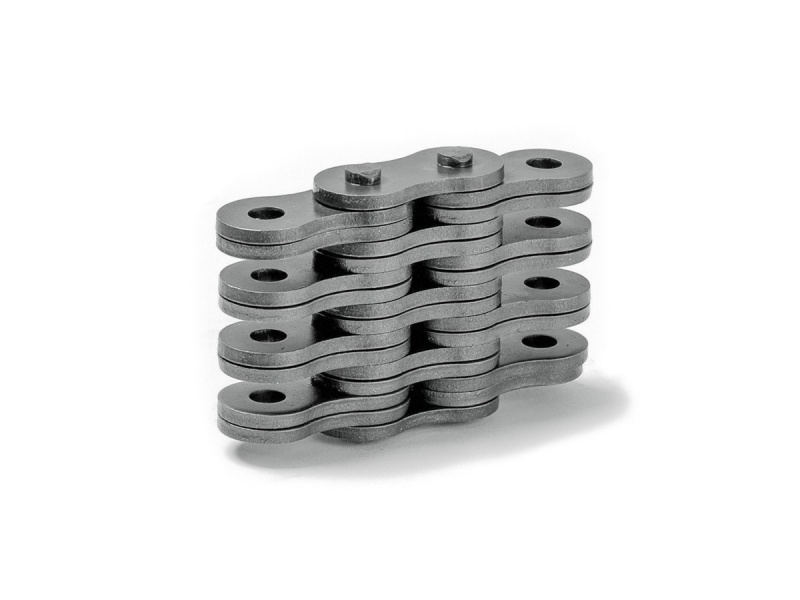

The leaf chain is formed by the combination of pins and chain plates connected in a loop. The leaf chain can also be customized according to the working conditions. Through reasonable material selection and optimized process, special leaf chains that exceed standard requirements can be manufactured.
|
ISO/DIN No. |
Pitch | Plates Lacing | Plate Depth | Plate Thickness | Pin Diameter | Pin Length | Ultimate Tensile Strength |
| P | h2 | S | d2 | L | Q | ||
| mm | mm | mm | mm | mm | KN | ||
| LL0822 | 12.70 | 2×2 | 10.92 | 1.55 | 4.45 | 7.60 | 17.80 |
| LL0844 | 4×4 | 13.00 | 31.10 | ||||
| LL0866 | 6×6 | 14.80 | 44.50 | ||||
| LL1022 | 15.88 | 2×2 | 13.72 | 1.65 | 5.08 | 9.30 | 22.20 |
| LL1044 | 4×4 | 16.10 | 44.50 | ||||
| LL1066 | 6×6 | 22.90 | 66.70 | ||||
| LL1224 | 19.50 | 2×2 | 16.13 | 1.90 | 5.72 | 10.70 | 28.90 |
| LL1244 | 4×4 | 18.50 | 57.80 | ||||
| LL1266 | 6×6 | 26.30 | 86.70 | ||||
| LL1622 | 25.40 | 2×2 | 21.08 | 3.03 | 8.28 | 17.20 | 60.00 |
| LL1644 | 4×4 | 30.20 | 120.00 | ||||
| LL1666 | 6×6 | 43.20 | 180.00 | ||||
| LL2022 | 31.75 | 2×2 | 26.42 | 3.52 | 10.19 | 20.10 | 95.00 |
| LL2044 | 4×4 | 35.10 | 190.00 | ||||
| LL2066 | 6×6 | 50.10 | 285.00 | ||||
| LL2422 | 38.10 | 2×2 | 33.40 | 4.96 | 14.63 | 28.40 | 170.00 |
| LL2444 | 4×4 | 49.40 | 340.00 | ||||
| LL2466 | 6×6 | 70.40 | 510.00 | ||||
| LL2822 | 44.45 | 2×2 | 37.08 | 5.56 | 15.90 | 34.00 | 200.00 |
| LL2844 | 4×4 | 60.00 | 400.00 | ||||
| LL2866 | 6×6 | 86.00 | 600.00 | ||||
| LL3222 | 50.80 | 2×2 | 42.29 | 6.18 | 17.81 | 35.00 | 260.00 |
| LL3244 | 4×4 | 61.00 | 520.00 | ||||
| LL3266 | 6×6 | 87.00 | 780.00 | ||||
| LL4022 | 63.50 | 2×2 | 52.76 | 7.89 | 22.89 | 44.70 | 360.00 |
| LL4044 | 4×4 | 77.90 | 720.00 | ||||
| LL4066 | 6×6 | 111.10 | 1080.00 | ||||
| LL4822 | 76.20 | 2×2 | 63.88 | 9.87 | 29.24 | 56.10 | 560.00 |
| LL4844 | 4×4 | 97.40 | 1120.00 | ||||
| LL4866 | 6×6 | 138.90 | 1680.00 |
