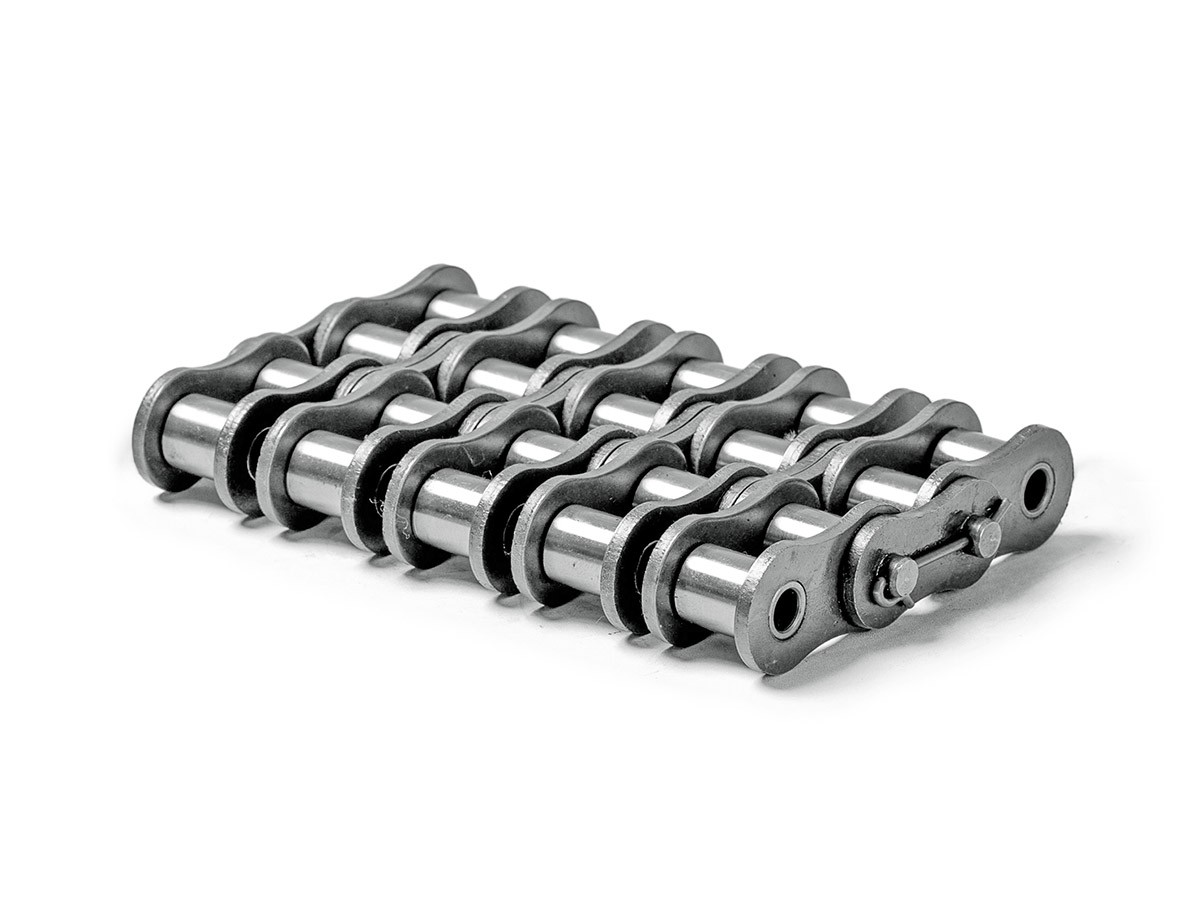

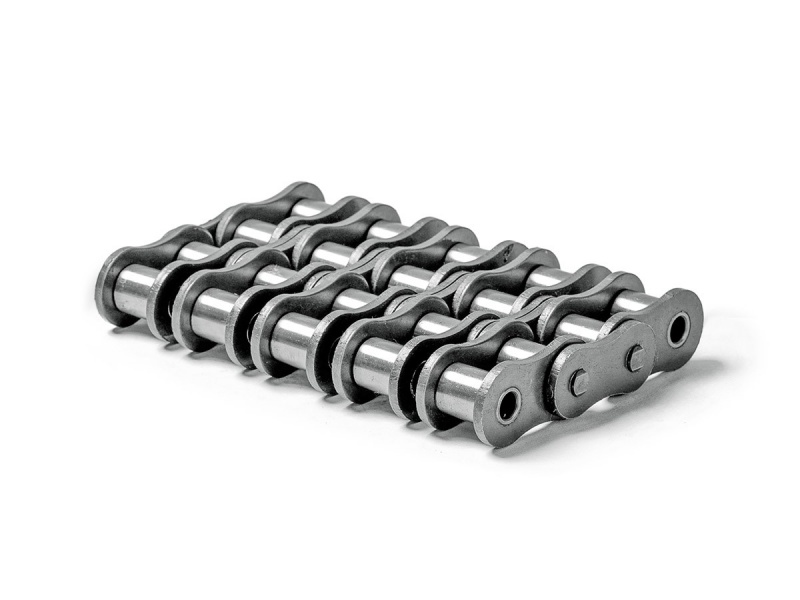

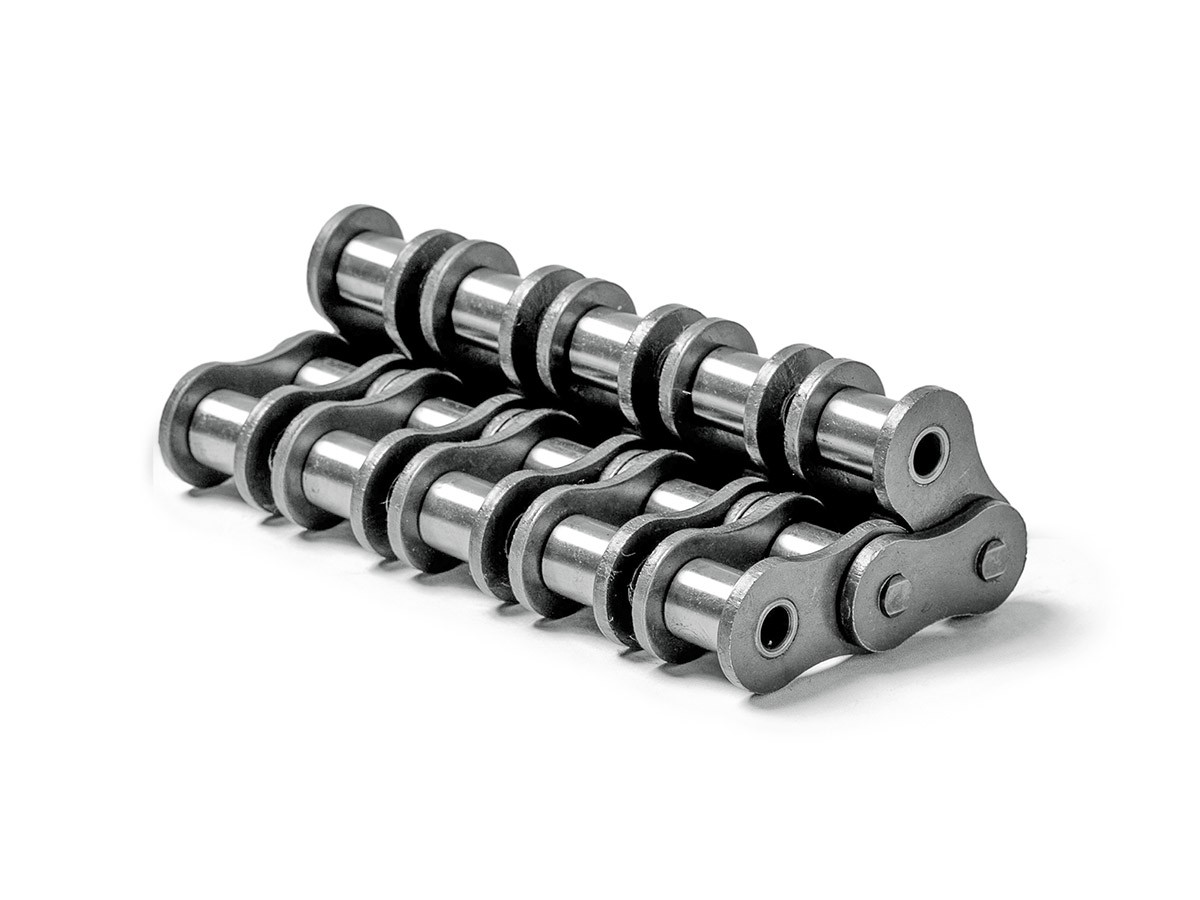

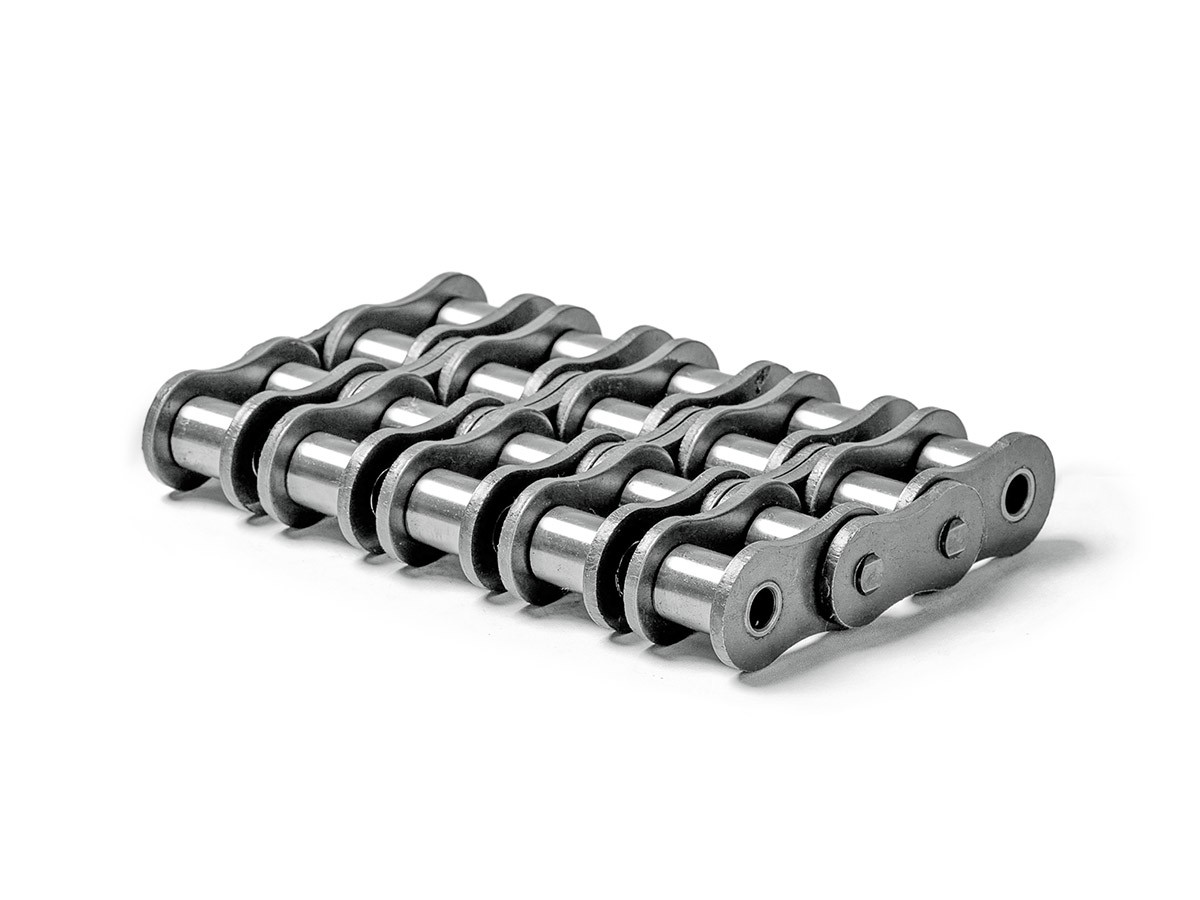

Oil chain can be used in oil, gas, coal mining, mining equipment, logging machinery and ball mills. Safety and reliability are crucial to oil chain.
| Chain No. |
GB Chain No. ISO Chain No. |
Pitch | Roller Diameter | Inner Width Of Inner Linkr | Pin Diameter | Plate Thickness | Plate Height | Array Pitch | Pin Length | Tensile Load | Weight/m |
| P | d1(max) | b1(min) | d2(max) | S | h2 | pt | L | min | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | KN | kf/m | ||
| 80GA-5 | 16S-5 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.40 | 278.00 | 13.63 |
| 100GA-5 | 20S-5 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 186.60 | 433.70 | 20.47 |
| 120GA-5 | 24S-5 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 235.90 | 625.50 | 29.93 |
| 140GA-5 | 28S-5 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.90 | 851.35 | 38.55 |
| 160GA-5 | 32S-5 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.20 | 1112.00 | 51.60 |
