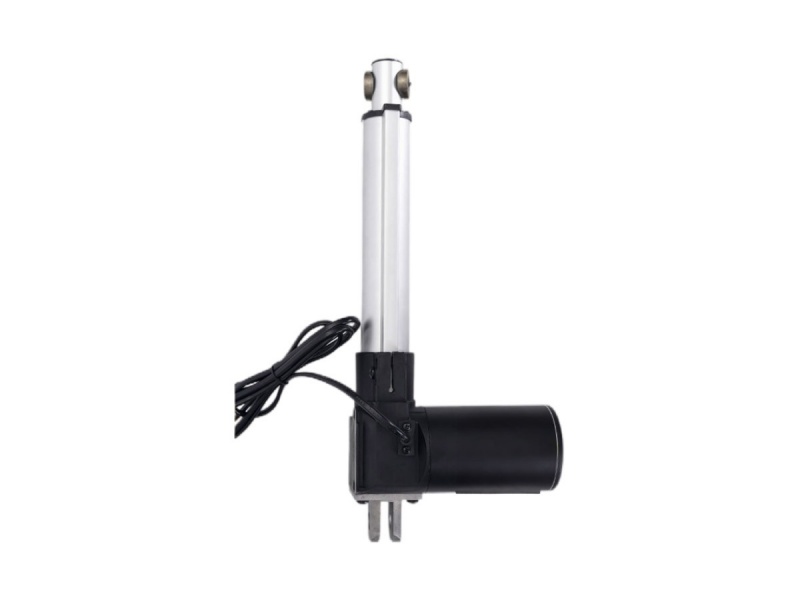

Front/rear joint styles available as options or customizable. Special Note: Rod-end joint bearings may affect the minimum installation distance (applies to all models).
Advantages:
Low noise (45 dB)
Strong self-locking force (worm gear type)
Disadvantages:
Low protection rating (IP43), recommended for indoor use
Common Applications:
Furniture, medical, display cabinets, and other indoor environments requiring low noise and heavy load.
Customizable:
Front and rear joints.
| Voltage：12V/24V/36/48V DC |
| Max Load： 6000N |
| Max Stroke： Customizable , not exceeding 800mm |

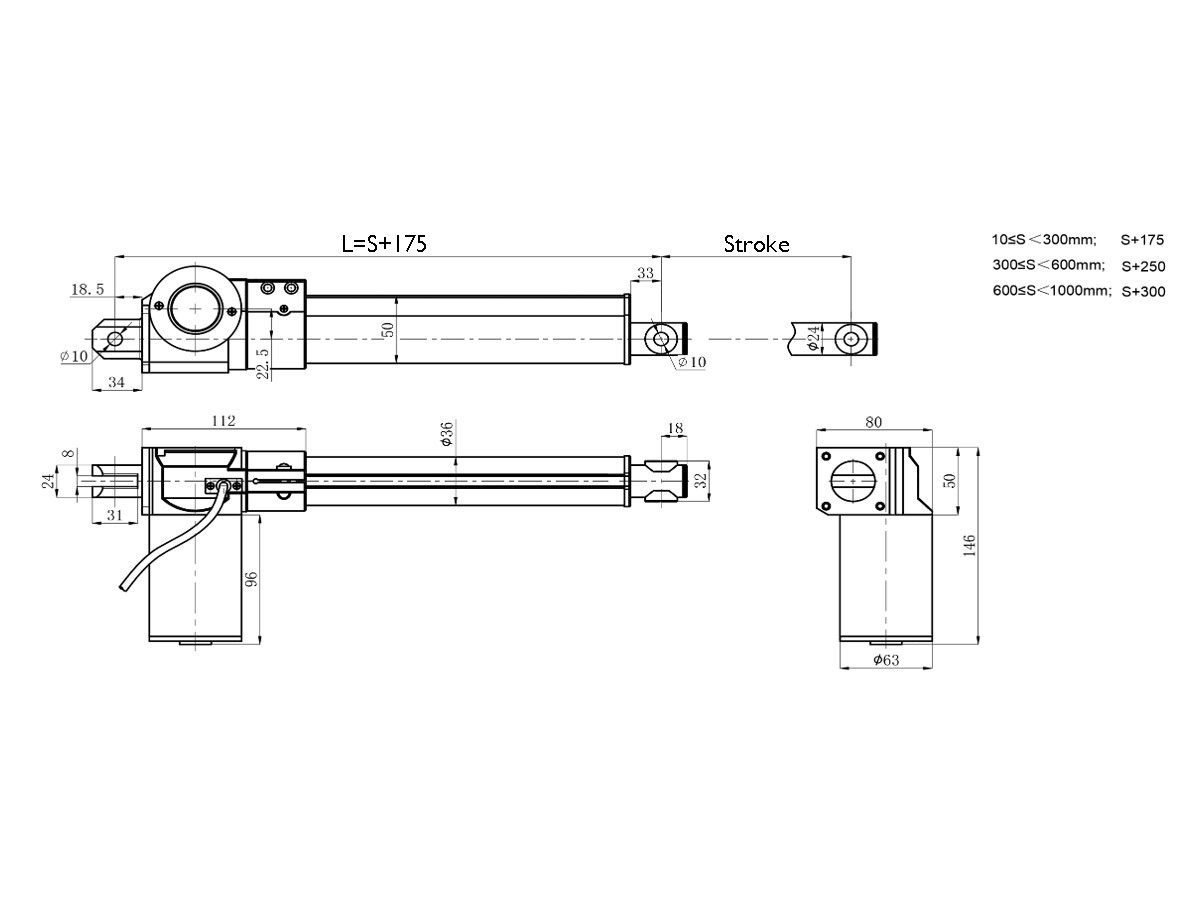

| Minimum Installation Distance: Stroke + 175 mm |
| Maximum Speed: 5-25 mm/s |
| Protection Level: IP43 |
| Operating Temperature: -15℃ to 60℃ |
| Noise Level: ≤45dB |
| Controller: Wired controller, wireless controller |
| Signal Output: Hall sensor, magnetic switch, limit switch lead-out |
| Code | Screw Leadmm | No-load Speed mm/s | Full-load Speed mm/s | Max Load N | No-load current | Full-load current | ||
| 12V | 24V | 12V | 24V | |||||
| A1 | 3 | 3.5 | 3 | 6500 | 0.6 | 0.5 | 7 | 3.5 |
| B1 | 3 | 7 | 5 | 3500 | ||||
| A2 | 4 | 4.7 | 3.3 | 6000 | ||||
| B2 | 4 | 9.3 | 6.5 | 3000 | ||||
| A3 | 8 | 9.3 | 6.5 | 3500 | ||||
| B3 | 8 | 18.7 | 13.1 | 1500 | ||||
| A4 | 12 | 14 | 9.8 | 2500 | ||||
| B4 | 12 | 28 | 19.6 | 1500 | ||||
| A5 | 16 | 18.7 | 13.1 | 2000 | ||||
| B5 | 16 | 37.3 | 26.1 | 1000 | ||||
Note :The data is measured at room temperature may have deviations of up to ±10%.
Front/rear joint styles available as options or customizable. Special Note: Rod-end joint bearings may affect the minimum installation distance (applies to all models).

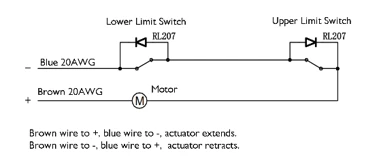

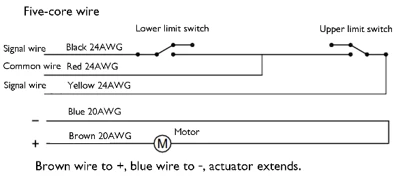

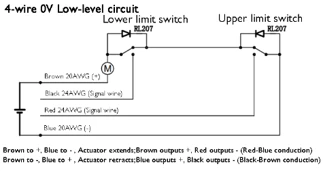

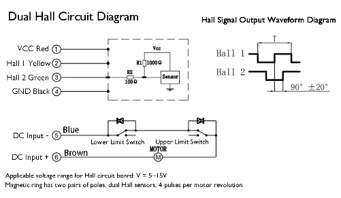

Motor wire colors may vary due to material supply batches. For inquiries, please contact us by phone. Additional wiring diagrams and electrical schematics are available upon request.
