Front/rear joint styles available as options or customizable. Special Note: Rod-end joint bearings may affect the minimum installation distance (applies to all models).
50 ≤ travel<300, minimum installation distance=travel+200
300 ≤ travel<600, minimum installation distance=travel+250
600 ≤ travel<1000, minimum installation distance=travel+300
Advantages
High protection (IP65), Mechanical clutch
High structural strength (steel telescopic rod, copper nut)
Metal gears (long lifespan, impact resistance)
Strong self-locking force (built-in self-locking torsion spring), overcurrent protection
Disadvantages
High noise level (70db), generally recommended for outdoor use
Common Applications
Agricultural machinery, truck bucket lifting, and other applications with high load requirements and harsh operating environments
Low requirements for noise, stability, and protection level
Scenarios with demand

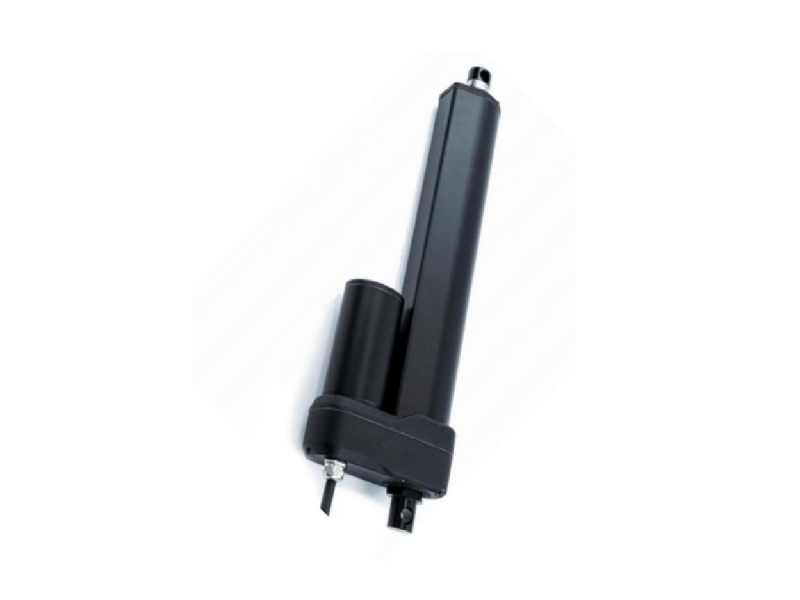

The front-end and back-end connectors can be customized
| Voltage: 12V/24V/36/48 DC |
| Max Load: 7000N |
| Max Stroke: Customizable, not exceeding 1000mm |

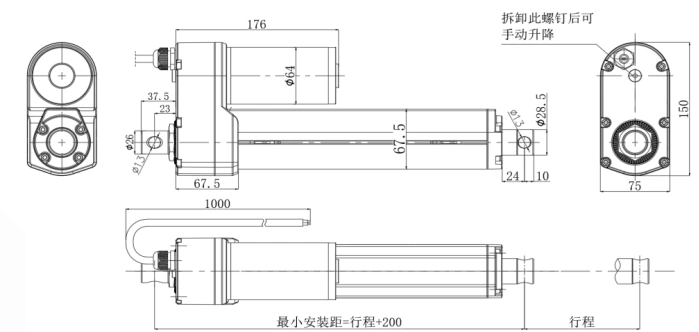

| Minimum Mounting Distance: Refer to the drawing |
| No-load Speed: 5~35mm/s |
| Protection Level: IP65 |
| Operating Temperature: -15°C to 60°C |
| Noise Level: ≤75dB |
| Controllers: Wired controller, wireless controller |
| Signal Outputs: Hall sensors, magnetic switches, limit switches |
| Code | Gear Ratio | Screw Lead | No-load speed(mm/s) | Full load speed(mm/s) | Ex-factory standard(N) | Self-locking force(N) | No-load Current(A) | Load Current(A) | ||||||
| 12V | 24V | 36V | 48V | 12V | 24V | 36V | 48V | |||||||
| A1 | 41 | 3 | 5.0 | 4.0 | 7000 | 8000 | 3 | 1.5 | 1.3 | 1.1 | 20 | 12 | 9 | 6 |
| B1 | 30 | 6.5 | 5.5 | 6000 | 7000 | |||||||||
| C1 | 20 | 10.0 | 8.5 | 4000 | 5000 | |||||||||
| D1 | 10 | 20.0 | 16.0 | 2000 | 2500 | |||||||||
| E1 | 5 | 40.0 | 30.0 | 1500 | 1000 | |||||||||
|
|
||||||||||||||
| A2 | 41 | 4 | 6.5 | 5.0 | 7000 | 7500 | 3 | 1.5 | 1.3 | 1.1 | 20 | 12 | 9 | 6 |
| B2 | 30 | 9.0 | 7.0 | 5000 | 5500 | |||||||||
| C2 | 20 | 13.0 | 10.0 | 3300 | 3500 | |||||||||
| D2 | 10 | 26.0 | 20.0 | 1600 | 1800 | |||||||||
| E2 | 5 | 53.0 | 40.0 | 800 | 800 | |||||||||
|
|
||||||||||||||
| A3 | 41 | 5 | 8.0 | 6.0 | 7000 | 7000 | 3 | 1.5 | 1.3 | 1.1 | 20 | 12 | 9 | 6 |
| B3 | 30 | 11.0 | 8.0 | 4200 | 4200 | |||||||||
| C3 | 20 | 16.0 | 12.0 | 2800 | 2800 | |||||||||
| D3 | 10 | 33.0 | 25.0 | 1400 | 1400 | |||||||||
| E3 | 5 | 66.0 | 50.0 | 700 | 700 | |||||||||
|
|
||||||||||||||
| A4 | 41 | 7.5 | 12.0 | 10.0 | 3500 | 3500 | 3 | 1.5 | 1.3 | 1.1 | 20 | 12 | 9 | 6 |
| B4 | 30 | 16.5 | 12.0 | 3000 | 3000 | |||||||||
| C4 | 20 | 24.5 | 18.0 | 2000 | 2000 | |||||||||
| D4 | 10 | 50.0 | 40.0 | 1000 | 1000 | |||||||||
| E4 | 5 | 100.0 | 75.0 | 500 | 800 | |||||||||
|
|
||||||||||||||
| A5 | 41 | 12 | 19.5 | 15.0 | 2200 | 2200 | 3 | 1.5 | 1.3 | 1.1 | 20 | 12 | 9 | 6 |
| B5 | 30 | 26.5 | 20.0 | 2000 | 2000 | |||||||||
| C5 | 20 | 39.0 | 30.0 | 1300 | 1300 | |||||||||
| D5 | 10 | 80.0 | 60.0 | 600 | 600 | |||||||||
| E5 | 5 | 160.0 | 120.0 | 300 | 300 | |||||||||
Note: The measured data in the table is at room temperature. Due to the processing and installation accuracy of parts, there may be errors, with the maximum deviation of ± 10%
Front/Rear Joint Styles: Available in standard options or customizable
Ball screw, copper nut, timing belt drive, manual crank function, or full IP66 protection can be selected per customer requirements.
Standard brushed motors available. Optional stepper, servo, or brushless motors (motor dimensions must not exceed 42×42mm; no height restriction). Electromagnetic brakes can be freely combined to achieve emergency stopping of the actuator.
Motor wire colors may vary due to material supply batches. For inquiries, please contact us by phone. Additional wiring diagrams and electrical schematics are available upon request.
