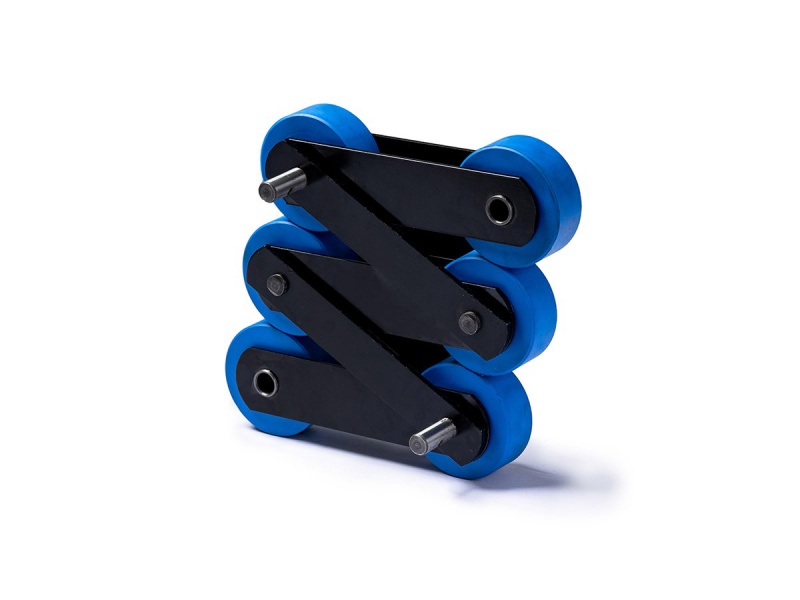

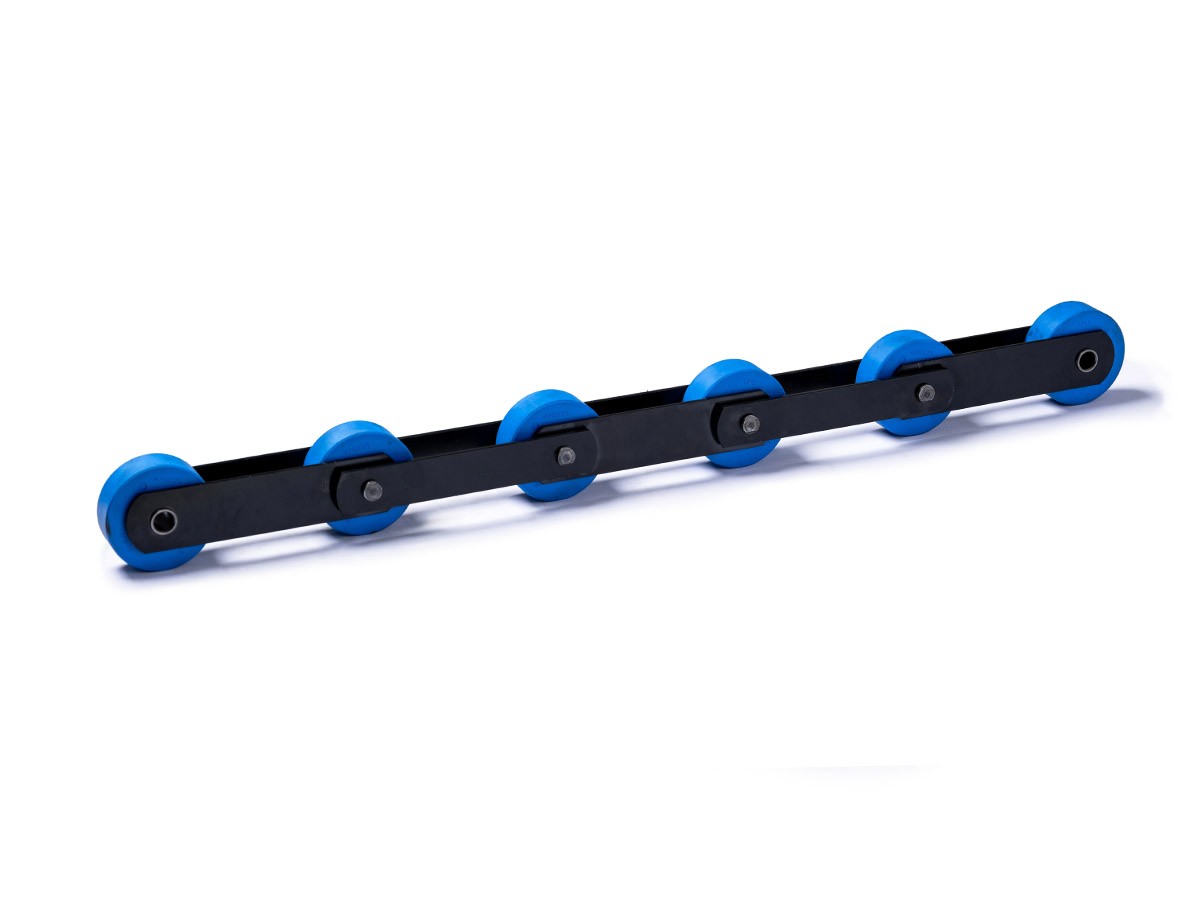

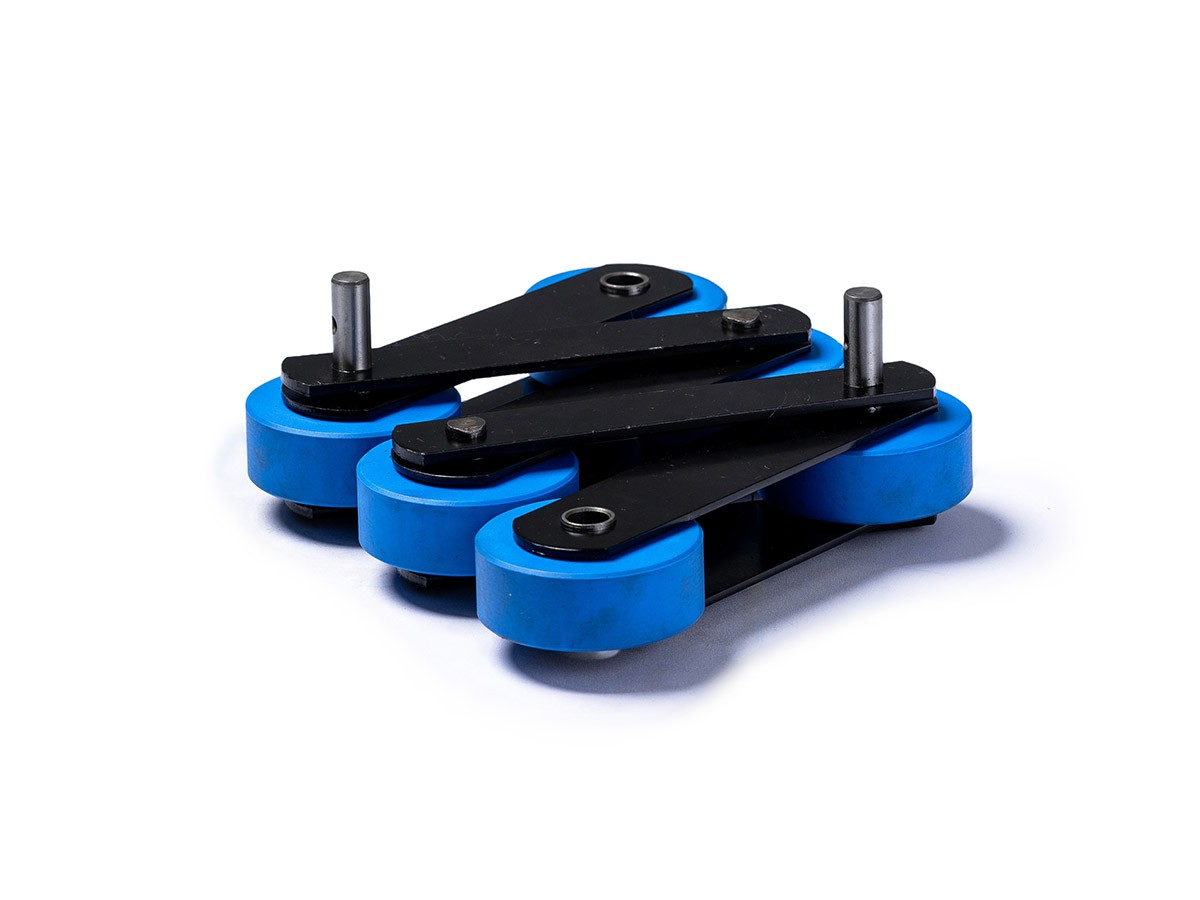

The escalator chain has small force per section, high strength and long life. The chain has good buffering, strong shock absorption, high speed and low noise during transmission.
| Chain No. | Pitch | Step Distance | Inner Width Of Link | Roller Diameter | Pin Diameter | Pin Length | Step Bushing | Plate Height | Tensile | Weight | |
| Hole Diameter | Length | ||||||||||
| p | T | b1(min) | d1(max) | d2(max) | L | d3 | b3 | h2 | min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
| T133A | 133.33 | 400±0.2 | 27min | 76 | 14.63 | 55.2 | 14.63 | 31 | 40 | 130 | 0.86 |
| T133B | 133.33 | 400±0.2 | 27min | 76 | 14.63 | 55.2 | 14.6 | 31 | 40 | 180 | 0.82 |
| T133C | 133.33 | 400±0.2 | 27min | 76 | 24 | 56 | 20 | 36 | 45 | 180 | 1.26 |
| T133D | 133.33 | 400±0.2 | 27min | 76 | 14.63 | 55.2 | 14.63 | 31 | 40 | 180 | 0.77 |
| T133E | 133.33 | 400±0.2 | 27min | 76 | 14.63 | 55.2 | 14.63 | 31 | 40 | 130 | 0.77 |
| T133F | 133.33 | 400±0.2 | 27min | 76 | 12.67 | 51 | 12.67 | 31 | 38 | 90 | 0.48 |
| T133G | 133.33 | 400±0.2 | 27min | 75 | 14.63 | 55.2 | 14.63 | 31 | 40 | 180 | 0.83 |
| T133H | 133.33 | 400±0.2 | 27.1min | 80 | 24 | 56 | 20 | 31 | 50.0 | 200 | 1.14 |
| T133I | 133.33 | 400±0.2 | 27.1min | 80 | 24 | 56 | 20 | 31 | 50.0 | 200 | 1.19 |
| T133J | 133.33 | 400±0.2 | 32.9min | 90 | 29 | 68 | 20 | 31 | 60 | 310 | 1.7 |
| T133K | 133.33 | 400±0.2 | 25.1min | 75 | 12.5 | 49 | 12.8 | 28.5 | 35 | 88 | 0.64 |
| T133L | 133.33 | 400±0.2 | 25.2min | 75 | 14.63 | 53.4 | 14.8 | 33.5 | 35 | 150 | 0.77 |
| T133M | 133.33 | 400±0.2 | 25.1min | 75 | 20 | 49 | 20 | 34.5 | 45 | 173 | 0.82 |
| T133N | 133.33 | 400±0.2 | 27min | 70 | 14.63 | 55.2 | 14.63 | 31 | 40 | 180 | 0.81 |
| T133O | 133.33 | 400±0.2 | 35.5min | 70 | 12 | 58.50 | 14.63 | 31 | 35 | 120 | 0.67 |
| T133R | 133.33 | 400±0.2 | 25.1min | 75 | 12.5 | 48.4 | 12.8 | 28.5 | 35 | 105 | 0.67 |
| 133S | 133.33 | 400±0.2 | 27.1min | 70 | 14.63 | 55 | 14.63 | 31 | 35 | 150 | 0.75 |
| 133T | 133.33 | 400±0.2 | 27min | 70 | 14.63 | 55.2 | 14.63 | 31 | 35 | 123 | 0.73 |
| 133U | 133.33 | 400±0.2 | 21min | 75 | 12.6 | 47 | 12.8 | 32.5 | 32 | 105 | 0.7 |
| 135V | 135 | 405±0.2 | 27.3min | 75 | 14.63 | 54 | 15 | 65 | 32 | 120 | / |
| 135W | 135 | 405±0.2 | 27.3min | 75 | 14.63 | 54 | 15 | 65 | 40 | 190 | / |
| 135X | 135 | 405±0.2 | 27.3min | 75 | 20 | 55 | 15 | 51.5 | 43/46 | 190 | / |
