Prioritize meeting thrust requirements first, then no-load/full-load speed.

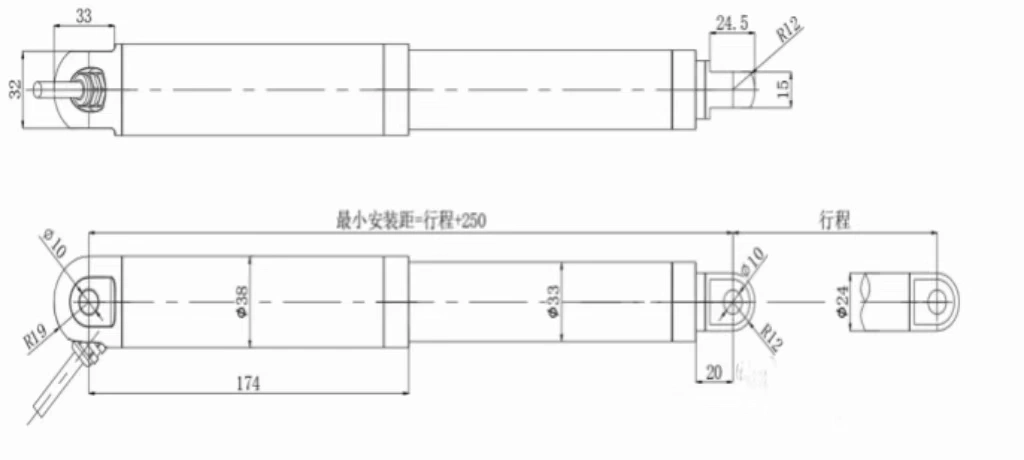

10≤S≤400， Minimum installation distance=S+250
When 400 ＜ S ≤ 600, the minimum installation distance is S+300
When 600 ＜ S ≤ 1000, the minimum installation distance is S+350

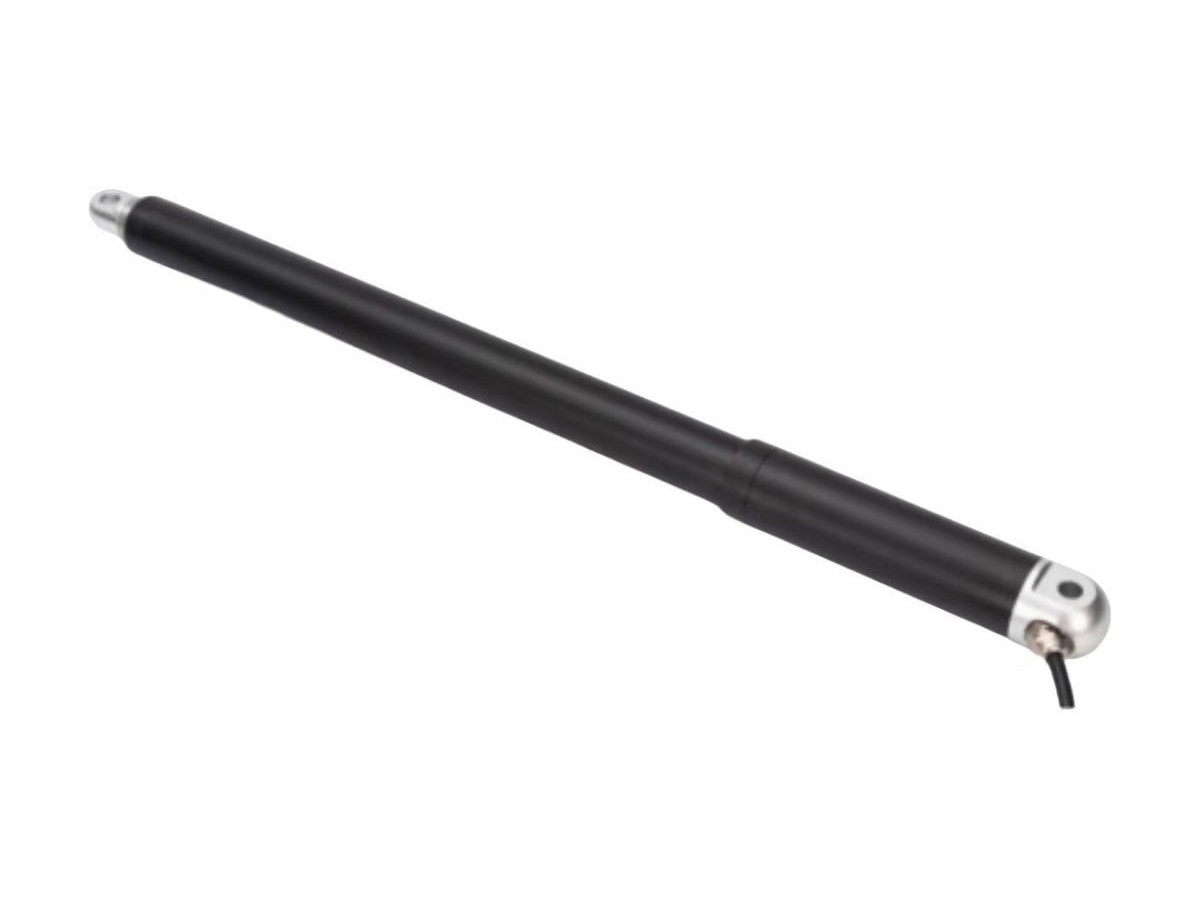

| Voltage: 12/24V DC |
| Max Load: 3000 N |
| Working Frequency: 10% |
| No-load Speed： 5~26mm/s |
| Protection Level: IP67 |
| Operating Temperature: -15℃~60℃ |
| Noise Level: ≤50 dB |
| Controller Options: Wired controller, wireless controller, customized controller. |
| Built-in Limit Switches: Non-adjustable |
| Code | Lead(mm) | Speed(mm/s) | Max Load(N) | Self-locking Force max(N) | No-load Current(A) | Full-load Current(A) | |||
| No-load | Full-load | 12V | 24V | 12V | 24V | ||||
| A1 | 3 | 6.0 | 5.0 | 3000 | 3200 | 1.0 | 0.5 | 8 | 4 |
| A2 | 4 | 9.0 | 6.7 | 2500 | 3000 | ||||
| A3 | 5 | 11.0 | 8.3 | 2000 | 2200 | ||||
| A4 | 7.5 | 16.0 | 12.5 | 1800 | 2000 | ||||
| A5 | 12 | 26.0 | 20.0 | 1200 | 1200 | ||||
Selection Criteria: Prioritize meeting thrust requirements first, then no-load/full-load speed.
Self-locking Optimization: To ensure self-locking force, select specification codes with smaller lead values.
Speed Note: The full-load speed of this actuator is approximately 70% of its no-load speed (marked in the table).
Data Accuracy: Table values are measured at room temperature; deviations up to ±10% may occur due to machining and assembly tolerances.
