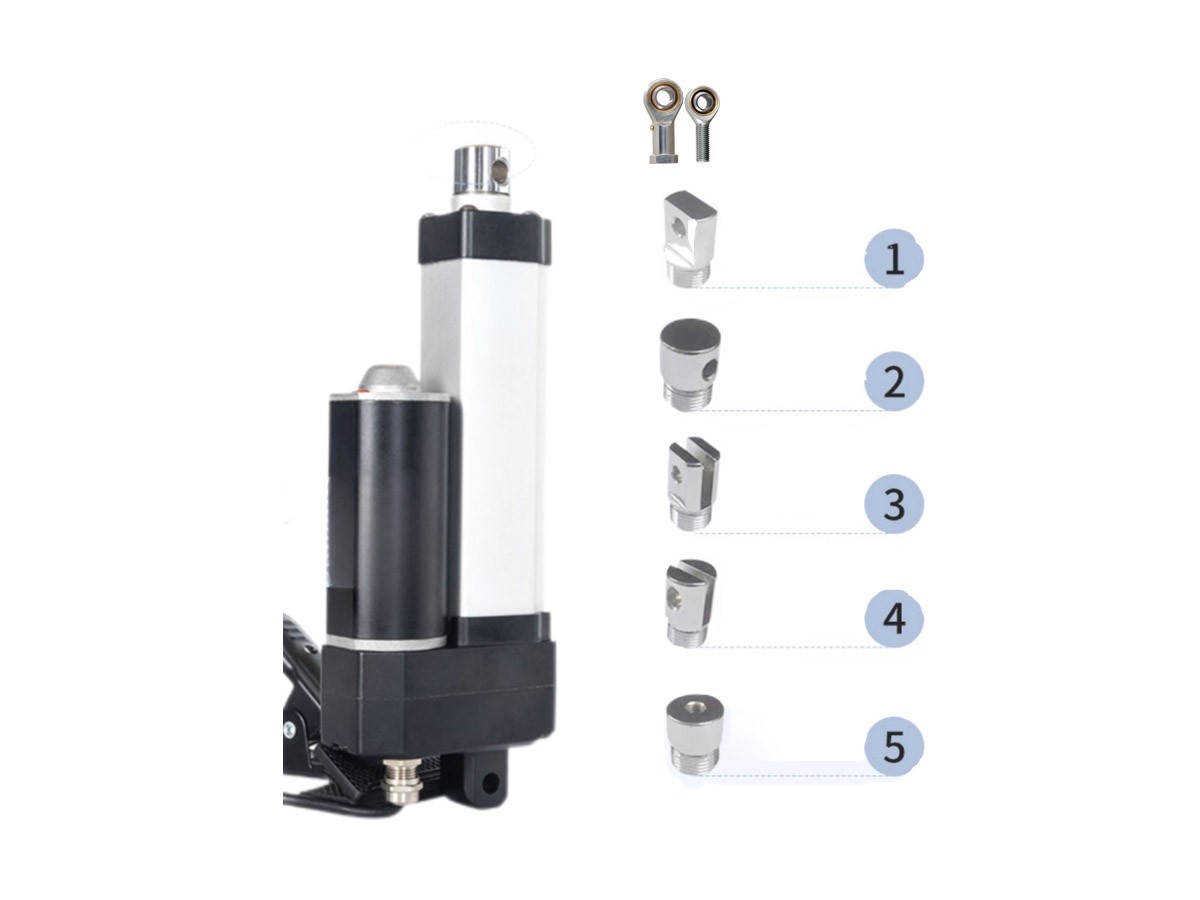

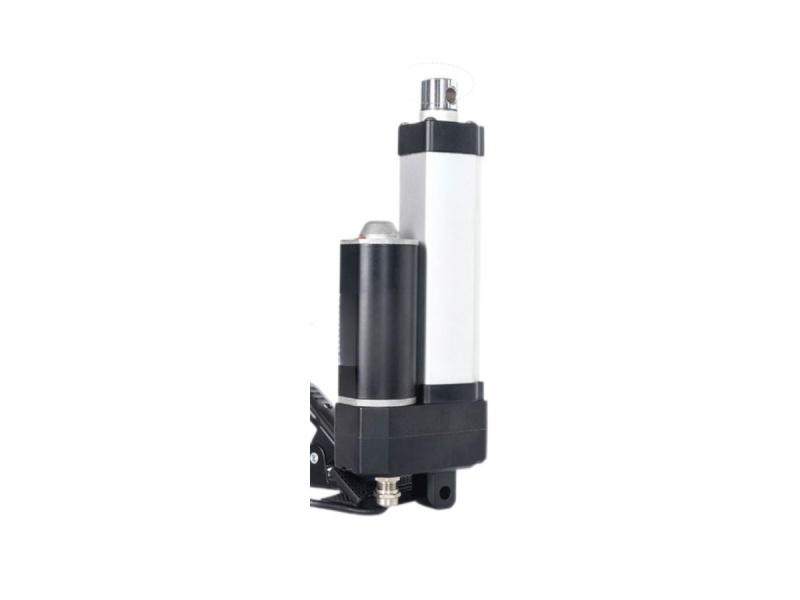

Front/rear joint styles available as options or customizable. Special Note: Rod-end joint bearings may affect the minimum installation distance (applies to all models).
Advantages
High Protection (IP65/IP67)
Low Noise (45 dB)
Strong Self-Locking (worm gear structure)
Common Applications
Furniture, medical equipment, automation systems, and other scenarios requiring low noise and high protection standards.
Customizable front/rear joints.
| Voltage: 12/24/36/48V DC |
| Max Load: 4000N |
| Max Stroke: Customizable ,generally not exceeding 1000mm |

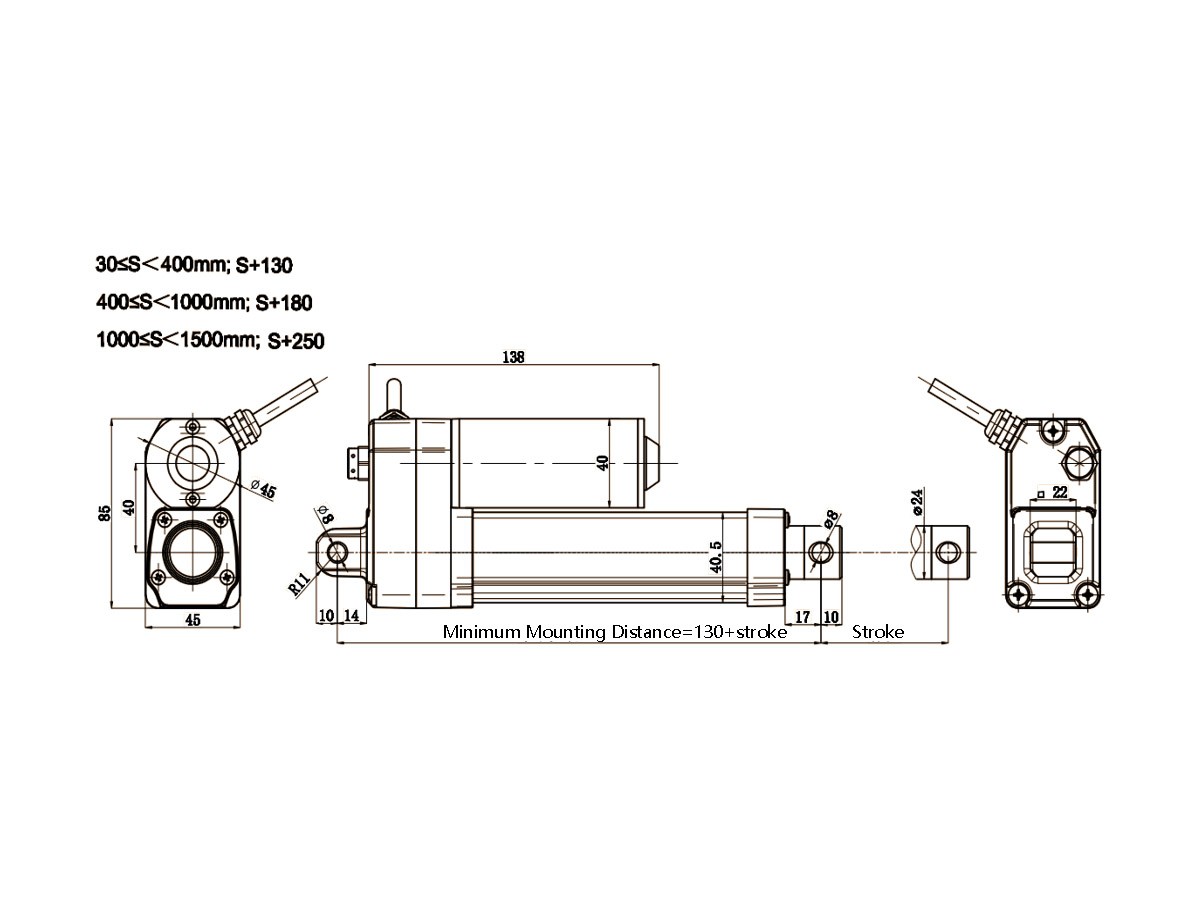

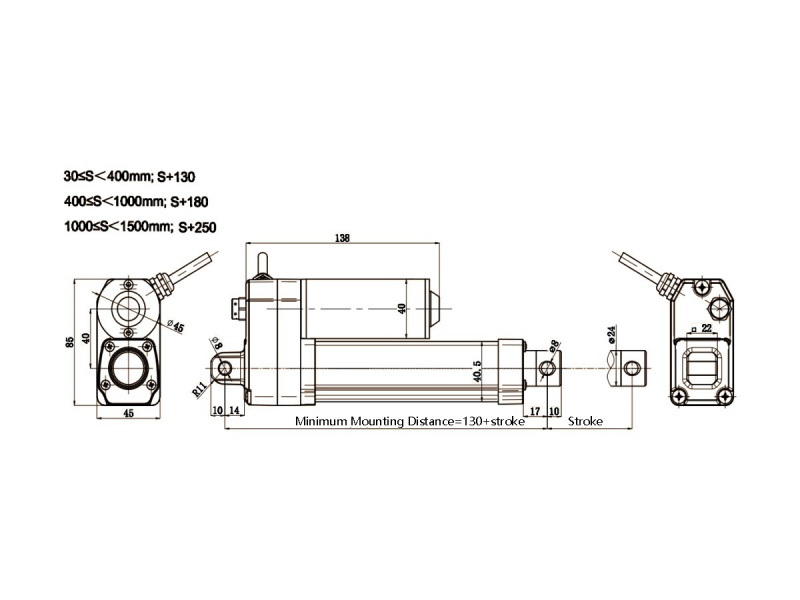

| Minimum Mounting Distance: Refer to the drawing |
| No-load Speed: 5-13.5mm/s |
| Protection Level: IP65/IP67 (requires optional waterproof valve) |
| Operating Temperature:： -20℃~60℃ |
| Noise Level: ≤45dB |
| Controllers: Wired controller, wireless controller |
| Signal Outputs: Hall sensors, magnetic switches, limit switches |
| Code | No-load Speed mm/s | Load Speed mm/s | Max Load(N) | No-load Current(A) | Full-load Current(A) | ||||||
| 12V | 24V | 36V | 48V | 12V | 24V | 36V | 48V | ||||
| A | 5.2 | 2.8 | 4000 | 0.7 | 0.4 | 0.3 | 0.18 | 6.6 | 3.6 | 2.7 | 1.8 |
| B | 6.5 | 3.5 | 3500 | ||||||||
| C | 9.7 | 5.3 | 2500 | ||||||||
| D | 12.9 | 7.1 | 2000 | ||||||||
| E | 15.5 | 8.5 | 1500 | ||||||||
Note: The data is measured at room temperature may have deviations of up to ±10%.
Front/rear joint styles available as options or customizable. Special Note: Rod-end joint bearings may affect the minimum installation distance (applies to all models).

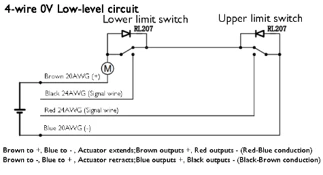

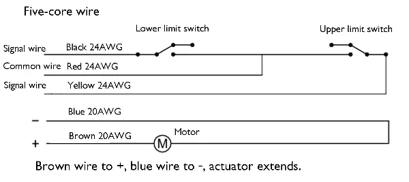

Motor wire colors may vary due to material supply batches. For inquiries, please contact us by phone. Additional wiring diagrams and electrical schematics are available upon request.
