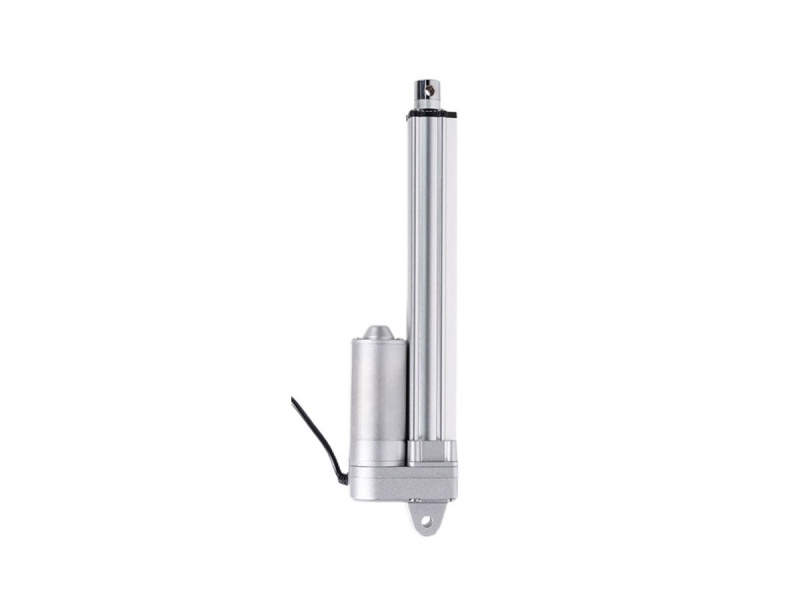

Sweeper trucks, mist spray trucks, automation equipment, and other harsh environments requiring high stability and protection. Suitable for scenarios where noise tolerance is low but demands for reliability and protection are critical.
Advantages
High Protection (IP65/IP66)
Metal Gears (long lifespan, impact-resistant)
Durability (25,000 cycles)
Common Applications
Sweeper trucks, mist spray trucks, automation equipment, and other harsh environments requiring high stability and protection. Suitable for scenarios where noise tolerance is low but demands for reliability and protection are critical.
Customizable front/rear joints.
| Voltage: 12/24/36/48V DC |
| Max Load: 2800N |
| Max Stroke: Customizable |
| Minimum Mounting Distance: Refer to the drawing |
| No-load Speed: 5-160 mm/s |
| Protection Level: IP65/IP66 |
| Operating Temperature:： -20℃~60℃ |
| Noise Level: ≤65dB |
| Controllers: Wired controller, wireless controller |
| Signal Outputs: Hall sensors, magnetic switches, limit switches |
| Code | No-load Speed mm/s | Load Speed mm/s | Max Load(N) | No-load Current(A) | Full-load Current(A) | ||||||
| 12V | 24V | 36V | 48V | 12V | 24V | 36V | 48V | ||||
| A | 5 | 3 | 2000 | 0.5 | 0.3 | 0.2 | 0.15 | 5.4 | 2.5 | 3.8 | 1.2 |
| B | 7 | 4 | 1800 | ||||||||
| C | 12 | 6 | 1500 | ||||||||
| D | 15 | 8 | 1000 | ||||||||
| E | 20 | 10 | 800 | ||||||||
| F | 25 | 13 | 700 | ||||||||
| G | 38 | 19 | 500 | ||||||||
| H | 45 | 23 | 400 | ||||||||
| I | 55 | 28 | 300 | ||||||||
| J | 65 | 33 | 250 | ||||||||
| K | 100 | 50 | 200 | ||||||||
| L | 160 | 80 | 100 | ||||||||
Note: The data in the table is measured at room temperature. Due to parts processing and installation precision, there may be errors with a maximum deviation of ±10%.
☆ Explanation on Self-locking Force:
1. If the push rod is used horizontally and reaches the end in an unloaded state, there is no need to consider self-locking.
2. If the push rod is used non-horizontally or has a load when fully extended, selflocking should be considered.
3. For the second scenario, it is recommended to choose a lead not greater than 5, Otherwise, with gear and internal transmission wear, self-locking force may gradually decrease, leading to inability to self-lock.
4. Our wired controllers have a function to increase self-locking force. If not purchased together, it is recommended that customers ensure the motor wires of the push rod are short-circuited when designing the control system, which can increase selflocking force by about 20%.

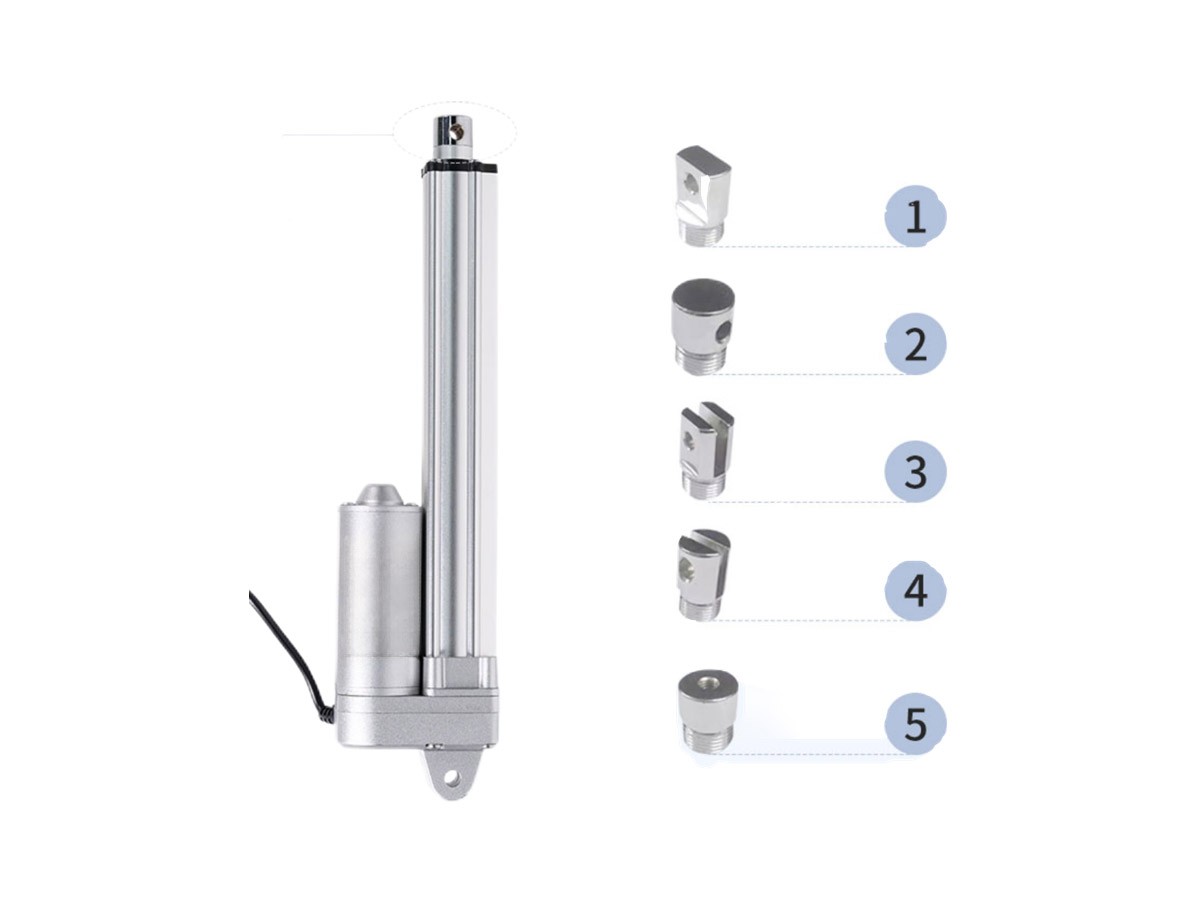

Front/Rear Joint Styles: Available in standard options or customizable
Ball screw, copper nut, timing belt drive, manual crank function, or full IP66 protection can be selected per customer requirements.
Standard brushed motors available. Optional stepper, servo, or brushless motors (motor dimensions must not exceed 42×42mm; no height restriction). Electromagnetic brakes can be freely combined to achieve emergency stopping of the actuator.
Motor wire colors may vary due to material supply batches. For inquiries, please contact us by phone. Additional wiring diagrams and electrical schematics are available upon request.
