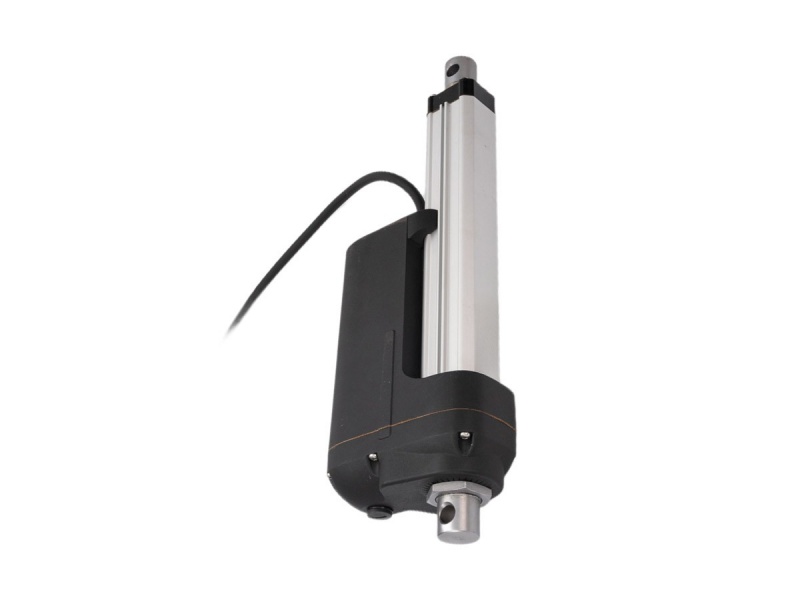

Agricultural machinery, truck bed lifting, and other high-load scenarios with harsh environments. Ideal for applications prioritizing stability and protection over noise reduction.
Advantages
High Protection (IP67/IP66)
Robust Structure (steel telescopic rod + brass nut)
Metal Gears (long lifespan, impact-resistant)
Strong Self-Locking (built-in locking torsion spring)
Over-Current Protection
Limitations
High Noise Level (70dB), recommended for outdoor use
Common Applications
Agricultural machinery, truck bed lifting, and other high-load scenarios with harsh environments. Ideal for applications prioritizing stability and protection over noise reduction.
Customizable front/rear joints.
| Voltage: 12/24/36/48V DC |
| Max Load: 12000N |
| Max Stroke: Customizable ,generally not exceeding 1000mm |

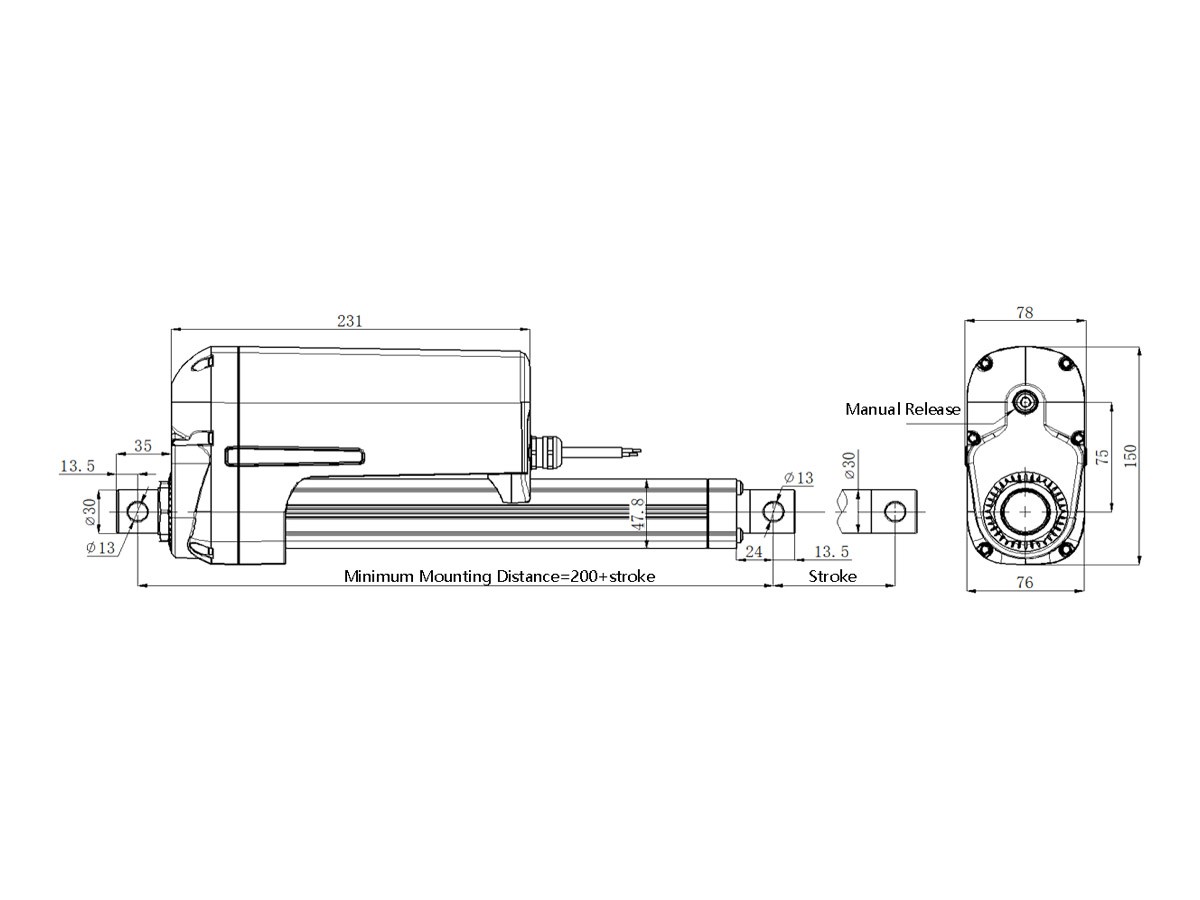

| Minimum Mounting Distance: Refer to the drawing |
| No-load Speed: 5-38 mm/s |
| Protection Level: IP67/IP66 |
| Operating Temperature: -20℃~60℃ |
| Noise Level: ≤70 dB |
| Controllers: Wired controller, wireless controller |
| Signal Outputs: Hall sensors, magnetic switches, limit switches |
| Code | Gear Ratio GR | Screw Lead P(mm) | No-load Speed(mm/s) | Full-load Speed(mm/s) | Rated Load(N) | Max Self-locking Force(N) | No-load Current(A) | Full-load Current(A) | ||||||
| 12V | 24V | 36V | 48V | 12V | 24V | 36V | 48V | |||||||
| A | 40:1 | 4 | 6.5 | 4.5 | 12000 | 15000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 13 | 7.5 | 5.5 |
| B | 30:1 | 4 | 8.5 | 6 | 11000 | 12000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 13 | 7.5 | 5.5 |
| C | 20:1 | 4 | 13 | 9 | 7500 | 9000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 13 | 7.5 | 5.5 |
| D | 40:1 | 8 | 13 | 7 | 10000 | 12000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 13 | 7.5 | 5.5 |
| E | 30:1 | 8 | 17 | 9.5 | 7000 | 8000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 13 | 7.5 | 5.5 |
| F | 20:1 | 8 | 25 | 14 | 5000 | 6000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| G | 40:1 | 12 | 20 | 11 | 6500 | 8000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| H | 30:1 | 12 | 25 | 13 | 4500 | 5500 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| I | 20:1 | 12 | 38 | 24 | 3200 | 4000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| J | 40:1 | 20 | 30 | 15 | 4000 | 5000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| K | 30:1 | 20 | 40 | 20 | 3000 | 4000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
| L | 20:1 | 20 | 60 | 30 | 2000 | 3000 | 5.0 | 2.5 | 2.3 | 1.3 | 25 | 12 | 7.5 | 5.5 |
1.Data Testing Conditions:
Measured at ambient temperature of 20°C and stable voltage supply.
2.Load Example:
For a load of 10,000 N, Gear D meets requirements. However, selecting Gear B or Gear A provides higher load margin, safety factor, and extended product lifespan.
3.Custom Stroke Limitations:
Maximum customizable stroke depends on load, speed, force direction, operating frequency, etc. If your parameters exceed standard ranges, please contact our sales engineers for feasibility evaluation..
